60.04mm(2.36378"), Large Solid Chrome Steel Balls For Big Bearing, G40 Or G60
Introduction
Chrome steel 52100 is a versatile material for many applications. The chromium steel ball contains high chromium, and has excellent surface quality and high bearing capacity due to being quenched. Throughout the manufacturing process, statistical process control can ensure tolerance accuracy, good surface finish and consistent high quality.
On the basis of GCr15 steel, the content of Si and Mn is appropriately increased to improve its hardenability and elastic limit, and its wear resistance is also better than that of GCr15. The applicable size range for manufacturing rolling elements is larger than that of GCr15.
This steel can meet the processing requirements under general working conditions. The brand numbers of ordinary high-carbon chromium bearing steel are GCr15 and GCr15SiMn. The performance of these two types of bearings is basically the same. But the hardenability of GCr15SiMn is better than GCr15, so GCr15SiMn is used for relatively large bearing parts.
Because GCr15SiMn has high crack sensitivity and low impact resistance, it cannot fully meet the requirements of thick-walled bearings and mining bearings. Therefore, the railway department does not allow the use of CGr15SiMn on passenger car bearings. It is also limited to thick-walled rolling mills and mining machinery under large and compact loads.
The surface of our chrome steel balls is extremely precise and smooth, ensuring that you will not find any defects such as flatness, dents, soft spots and cuts.
We are professional manufacture of AISI 52100 Chrome steel balls.The balls we can produced are ranging from 7.9375mm to 150mm. Based on more than two decades of continuous efforts and development,our company has become one of the leading domestic facility which can supply high precision steel balls with complete specifications.
Our services and advantages
| Special types of balls supplied. |
| Small MOQ with competitive price. |
| Fast delivery based on quality guaranteed. |
| Small quantity of free samples could be provided. |
| Normal have in stock within one week can be shipped. |
Parameter
| Ball Diameter |
Grade |
Hardness |
Material |
| 60.04mm(2.36378") |
G40 or G60 |
HRc 60-67 |
GCr15SiMn,100CrSiMn6-4,SUJ3,52100 |
Product Details
| Product Name |
High Quality Chrome Steel Balls |
| Size range |
Ø 59.94 mm – Ø 60.06 mm(GCr15SiMn/SUJ3/100CrMn6 Chrome Steel Balls) |
| Quality grades |
G40 or G60 for balls Ø59.94mm to 60.06mm |
| Hardness |
For 60mm group ball,
a minumun core hardness at centre of the ball shall be HRc55.
minumun hardness at surface of the ball shall be HRc60.
minumun hardness at depth of 15% ball diameter shall be HRc58.
|
| Application |
The High Quality Chrome Steel Balls are mainly applied in slewing ring bearing for wind turbines,such as single/double row ball bearing,single cross roller bearing,three roller bearing, double row angular contact ball bearing.Turntable bearing,Thrust ball bearing,Wheel hub bearing. |
Grade and Tolerance
| Precision / Grade |
Ball Diameter Tolerance
Vdws(≤) µm
|
Deviation from Spherical Form
△Rs(≤) µm
|
Maximun surface roughness
Ra(≤)µm
|
Lot diameter variation
Dwl(≤) µm
|
| G40 |
1 |
1 |
0.06 |
2 |
| G60 |
1.5 |
1.5 |
0.08 |
3 |
| Mechanical Properties |
| |
GCr15 |
GCr15SiMn |
| Density(g/cm3) |
7.8 |
7.8 |
| Hardenability |
Good |
Excellent |
| Wear Resistance |
Excellent |
Excellent |
Product Tags:
|
|

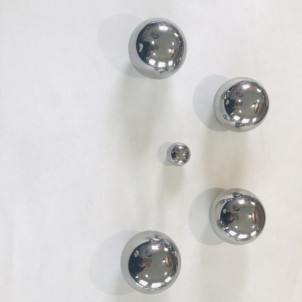

60.04mm 2.36378" Large Metal Ball For Big Bearing G40 G60 Images
|
